SANTOR Hybrid power amplifier

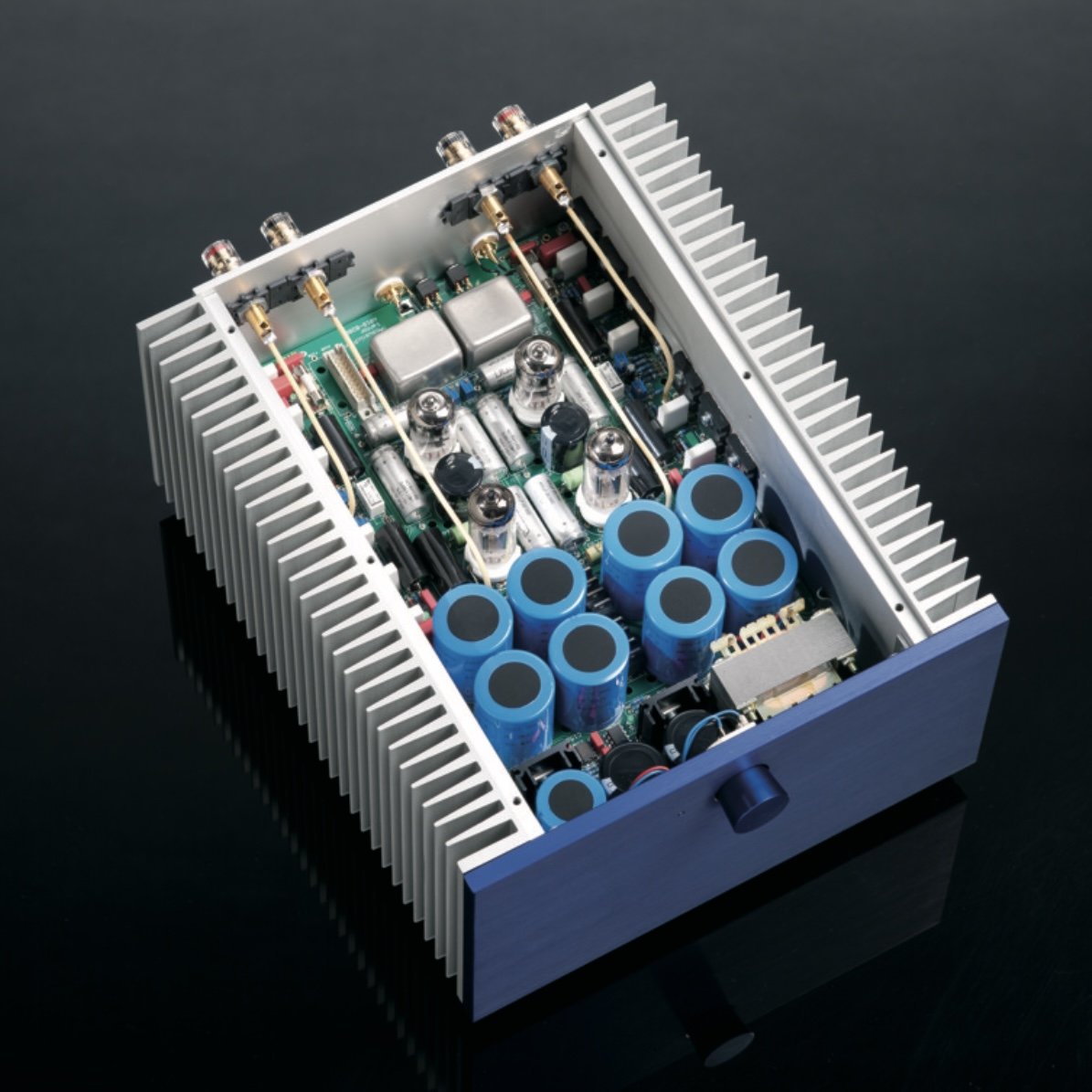

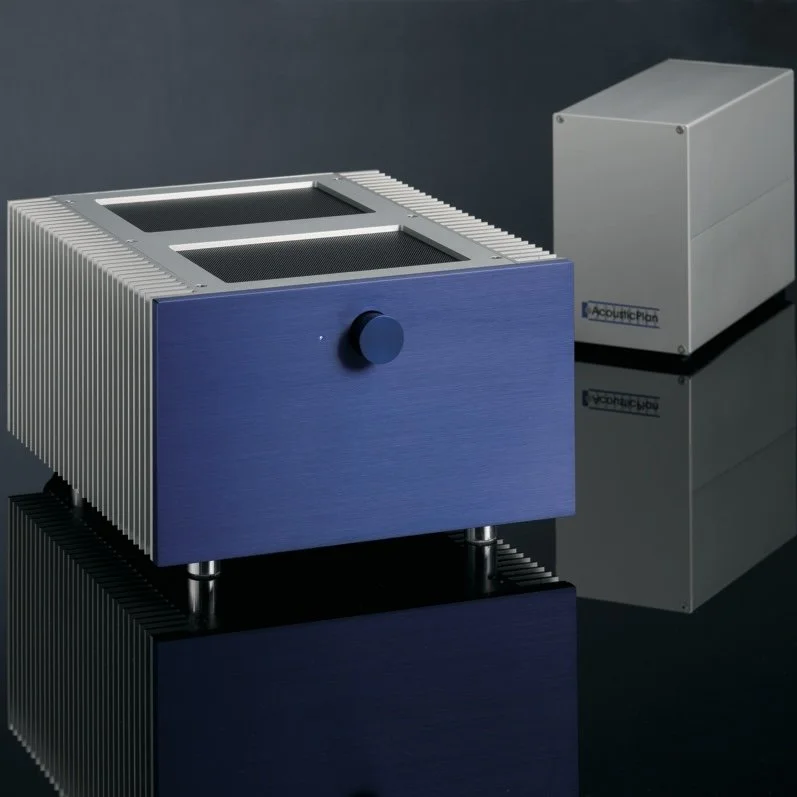

The Santor is a hybrid power amplifier with external power supply handcrafted by Claus Jäckle in Germany. It features a unique zero-feedback topology, a triode vacuum tube voltage gain stage, and a high-current MOSFET Class A output stage.

Design and Technical Specifications

• Topology: Two-stage amplification with zero global or local negative feedback.

• Tube Complement: Uses 6922/E88CC tubes for input gain alongside ECC99 driver tubes.

• Output Stage: Six push-pull MOSFETs per channel biased heavily into Class A.

• Power Output: 50 WPC into 8 ohms; 100 WPC into 4 ohms (strappable to mono).

Output power

50 W per channel at 8 Ohm

100 W per channel at 4 Ohm

160 W per channel at 2 Ohm

Input sensitivity

1 V

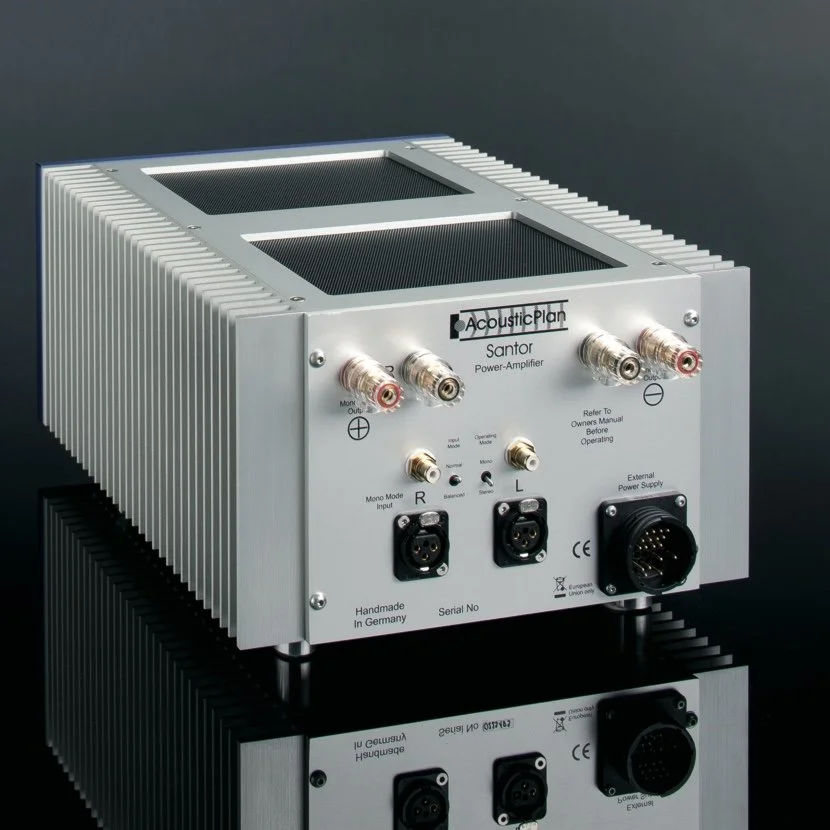

Entrances

4 x Line input

Signal-to-noise ratio

> 95 dB (A)

Finishing

Blue or black front panel, silver housing.

Weight

42 lbs

Dimensions

6.69 x 10.24 x 13.78 inches
