The Acoustic Plan MagAmp is a high-end hybrid integrated stereo amplifier engineered in Germany by Claus Jäckle of Acoustic Plan in collaboration with Swedish transformer specialist Lars Lundahl. It delivers 15 watts per channel into 8 ohms and weighs 19 kg (41.8 lbs)

Concept: Based on a magnetic amplifier topology originally conceptualized by Lars Lundahl in the 1960s.

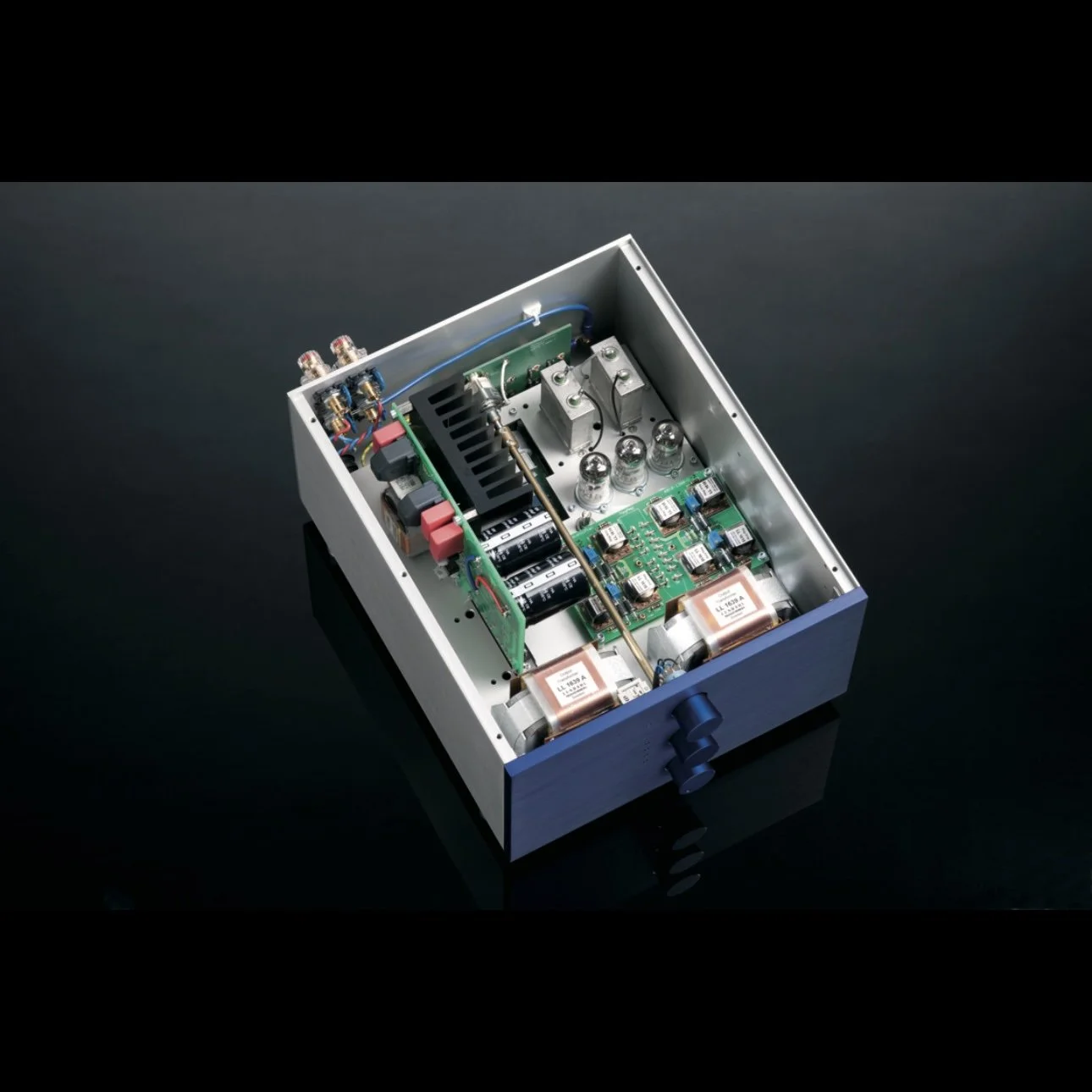

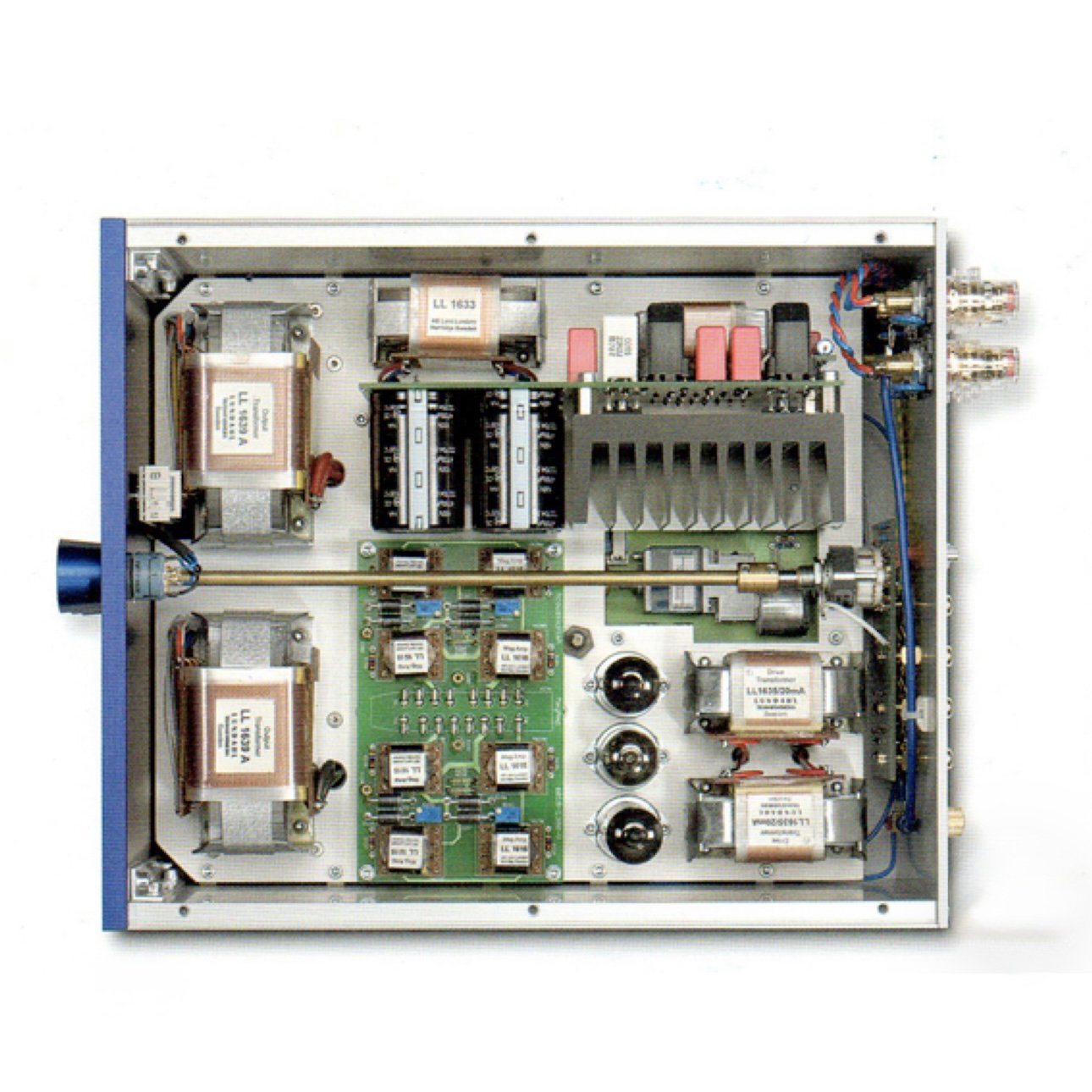

Circuitry: Features a tubed voltage-gain stage paired with a unique magnetic switching output stage utilizing small dual-primary transformers.

Power Output: 15 Watts per channel into 8 Ohms.

Signal-to-Noise Ratio (SNR): > 95 dB

Input Sensitivity: 200 mV (Line input)

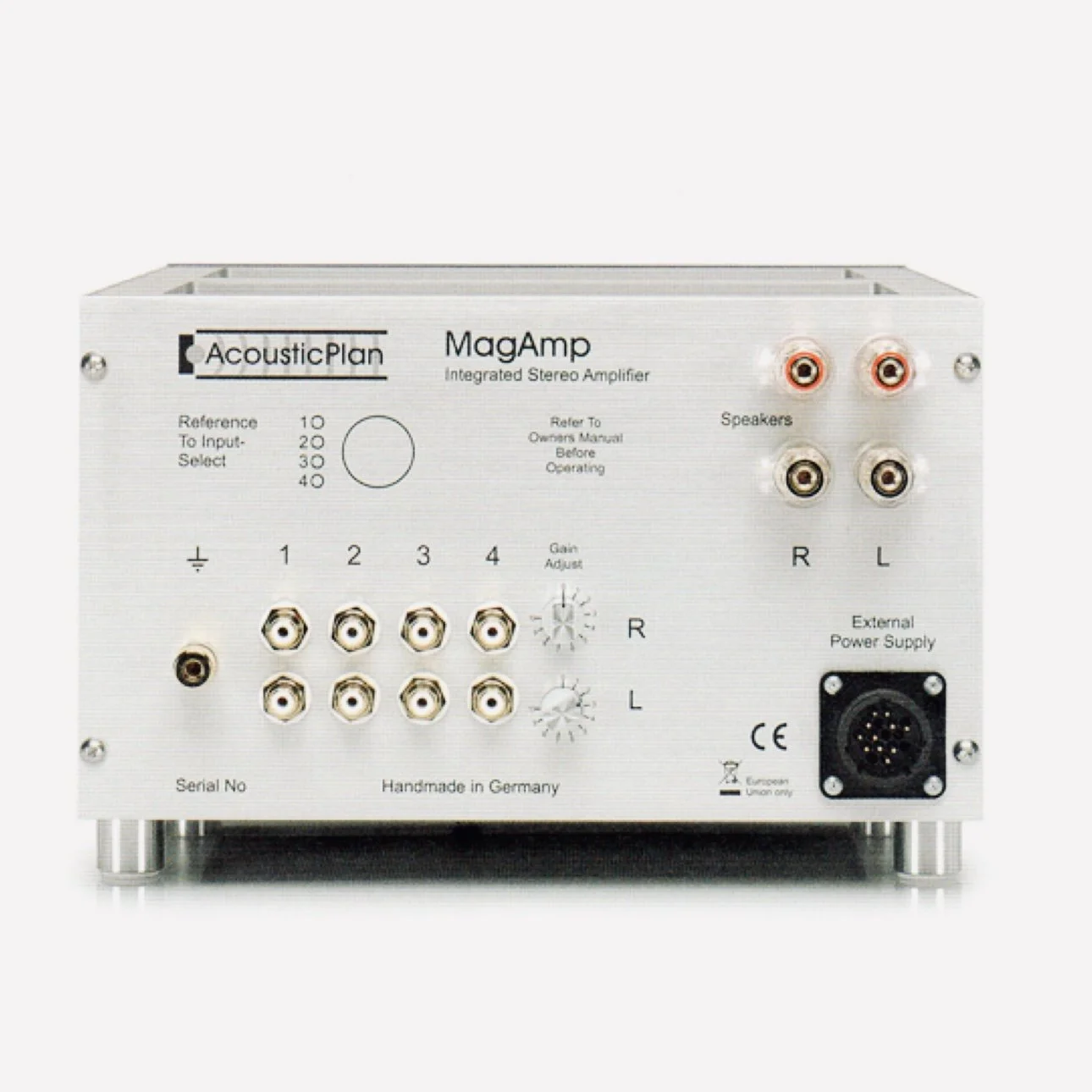

Inputs: 4 x Line-level analog inputs (RCA).

Dimensions (H x W x D): 170 mm x 260 mm x 350 mm (6.7" x 10.2" x 13.8").

Weight: 19 kg (41.8 lbs).

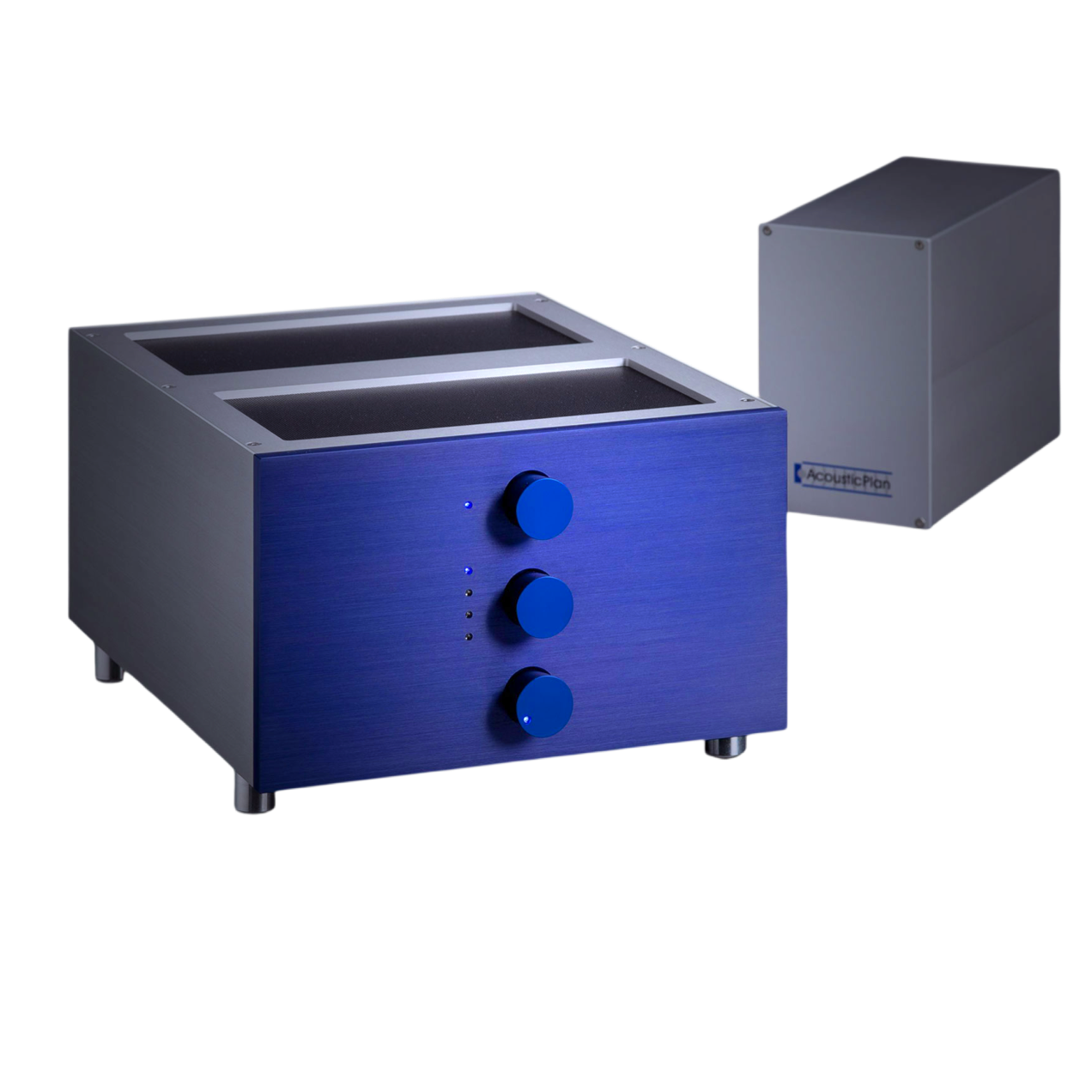

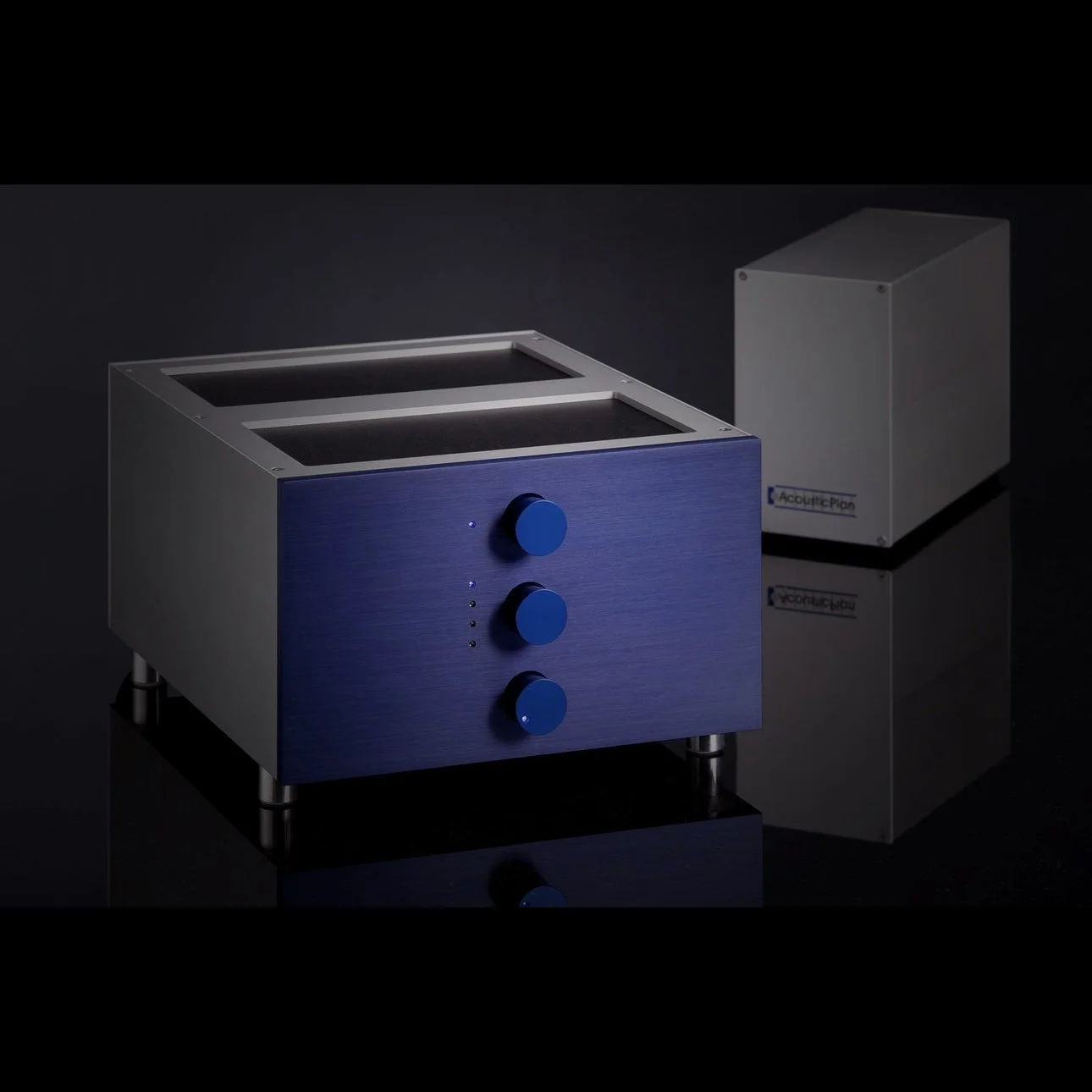

Faceplate Options: Available with a distinctive blue or black front panel, paired with a silver housing

HANDMADE TO ORDER IN GERMANY BY CLAUS JÄCKLE
